DALI TW Module Type 8

Easy connection and lightning control with iLumTech innovation.
The connected lighting products by iLumTech unite key concepts and technologies that are shaping the future of lighting. Practical, simple-to-use devices make your everyday life across work, rest and play more enjoyable - with just the right light atmosphere for every moment.

DALI TW Module allows for advanced Tunable White control of your LED lighting.
This DALI compatible device (device type 8) is especially designed for the Tunable White control of LED modules through a DALI interface. For correct functioning, an external LED driver (constant current) is required, whereas selection of the LED driver depends on the LED load used (forward voltage and current). DALI TW Module then controls the CCT of light according to the DALI commands received. On DALI line, the device appears as standard DALI device type 8 (colour control) allowing for direct brightness and CCT level control, group addressing, fading and scene settings.

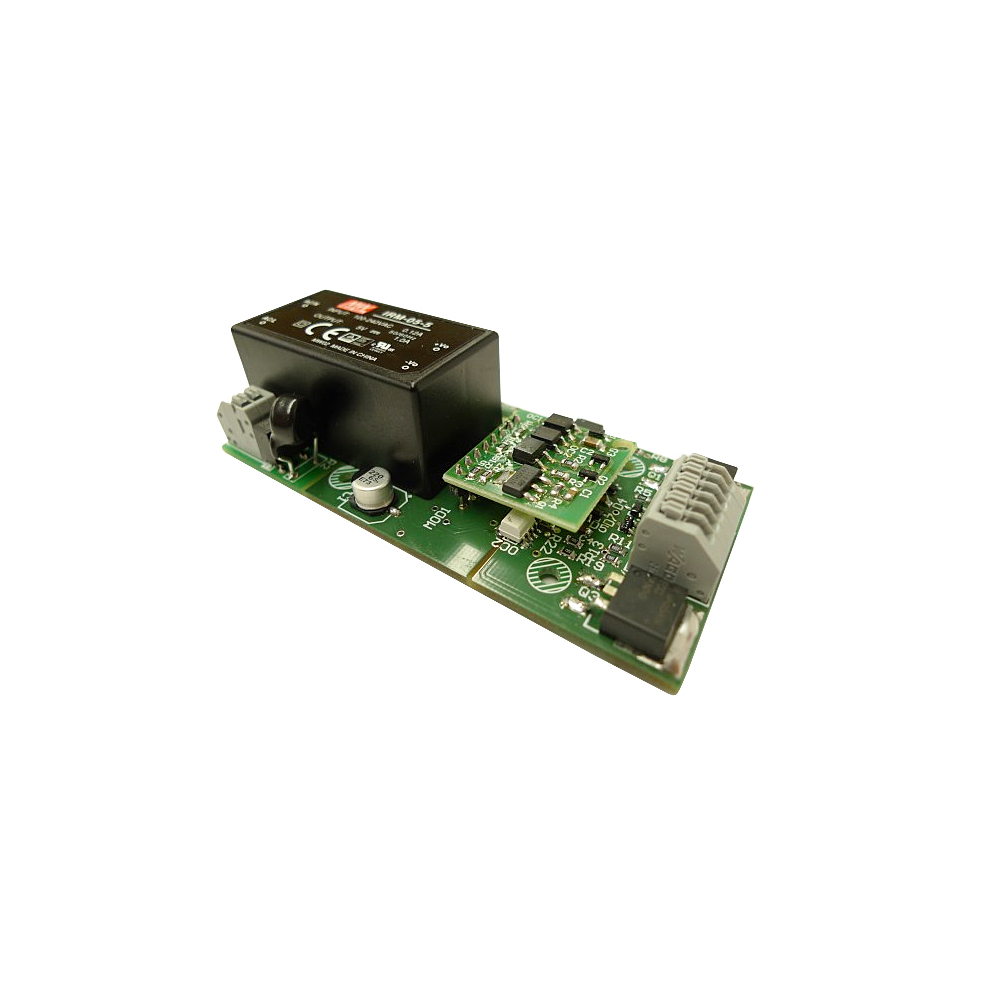

The device itself is powered independently from mains. Thanks to its open-frame module you can easily mount the device into the luminaire. This way, DALI TW Module represents a simple way of CCT control via DALI using standard components – LED driver and DALI controller (DALI controller must support DALI type 8).

Key features:

• Independent control of CCT
• Up to 180 V voltage range
• DALI control (device type 8) – one address only

Connections:

• Mains cable: Wires AWG 28 - 16 (0.08 – 1.5 mm²)
• DALI cable: Wires AWG 28 - 16 (0.08 – 1.5 mm²)
• LED cable: Wires AWG 28 - 16 (0.08 – 1.5 mm²)

Power:

• Mains supply: 90-260 V AC / 47-400 Hz / 120-370 V DC
• System power: < 200 mW
• DALI consumption: < 2 mA
• Insulation: Class II

Output:

• Output voltage range: 30-180 V DC
• Output current range: 0-2 A
• Output power range: 0-150 W

Mechanical data:

• Housing: open frame
• Weight: 60 g
• Dimensions: 94 x 45 x 26 mm

Operating conditions:

• Ambient temperature: 0 °C - +55 °C
• Relative humidity: < 85% (non-condensing)
• Storage temperature: -40 °C - +70 °C

Conformance with regulations:

• EN 55015: Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
• EN 61547: Equipment for general lighting purposes EMC immunity requirements
• EN 62386-102: Digital addressable lighting interface, general requirements for control gears
• EN 62386-207: Digital addressable lighting interface, LED drivers
• EN 62386-209 Digital addressable lighting interface, Colour control
