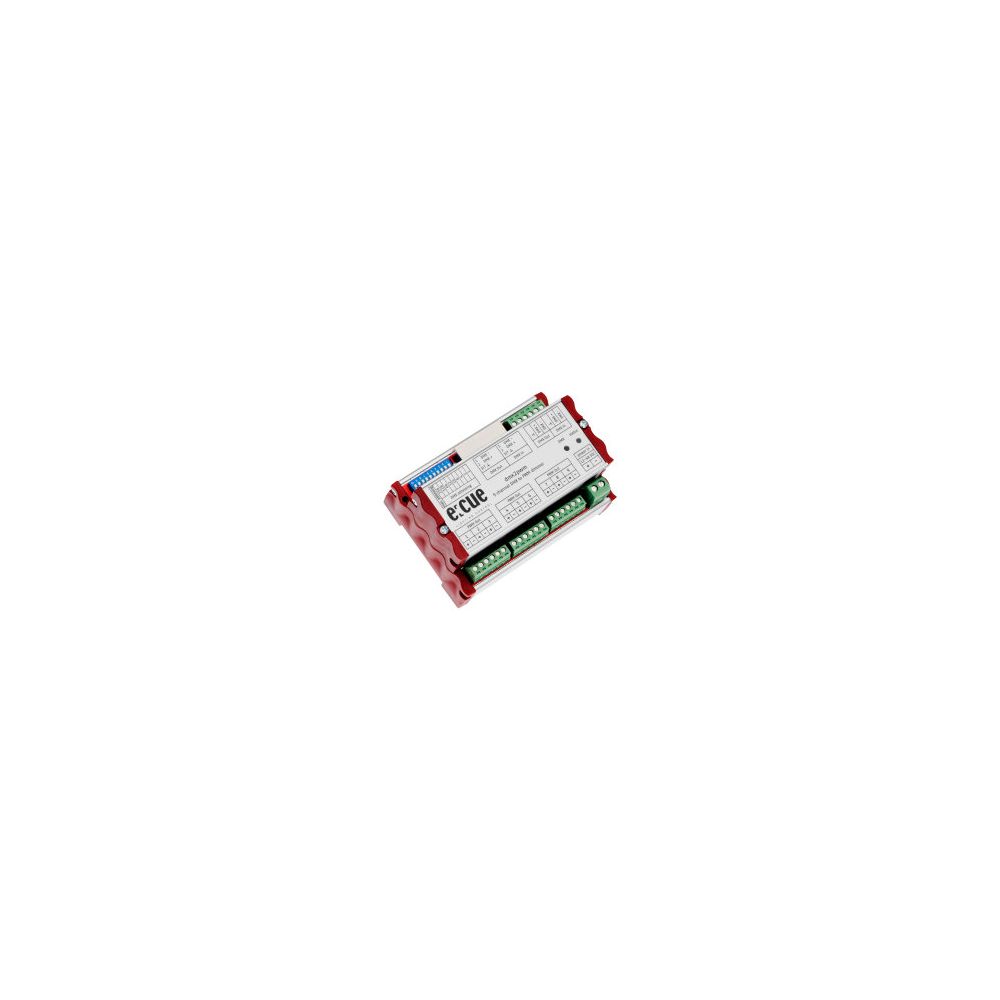

DMX2PWM Dimmer 3CH Housing | AA623900135 | TRAXON e:cue
Delivery time
Depending on the supplier - estimated 8-14 days
DMX2PWM Dimmers enable control of low-voltage LEDs using a DMX512 controller. Using PWM (Pulse-Width Modulation) technique, they are designed for use with constant voltage LEDs with a maximum output current of 2 A per channel, or 2.5 A for the three-channel version. DMX512 signal is amplified through DMX2PWM Dimmers for convenient daisy-chaining. DMX2PWM Dimmers’ flexibility makes installations easy with auto and manual DMX512 addressing modes, and in the case of the nine-channel version, the option of using an RJ45 connector or loose wire for DMX512 connection. The reverse supply protection and self-resetting over-current protection ensure safety against possible damage due to incorrect wiring. The nine-channel version is conveniently mountable inside equipment racks using standard 35 mm wide DIN rail.
Key features
- Control of constant voltage LED fixtures
- Three or Nine individually-controllable output channels via DMX512
- Reverse supply protection and overcurrent protection (self resetting)
- Smooth dimming via PWM with 488 Hz frequency
- Manual address setting or auto-addressing selectable
- Input voltage range: 12 to 48 V DC
- 14 bit PWM resolution calculated from 8bit DMX value
| Brand | TRAXON e:cue |
|---|---|
| GTIN | 4006584812233 |
