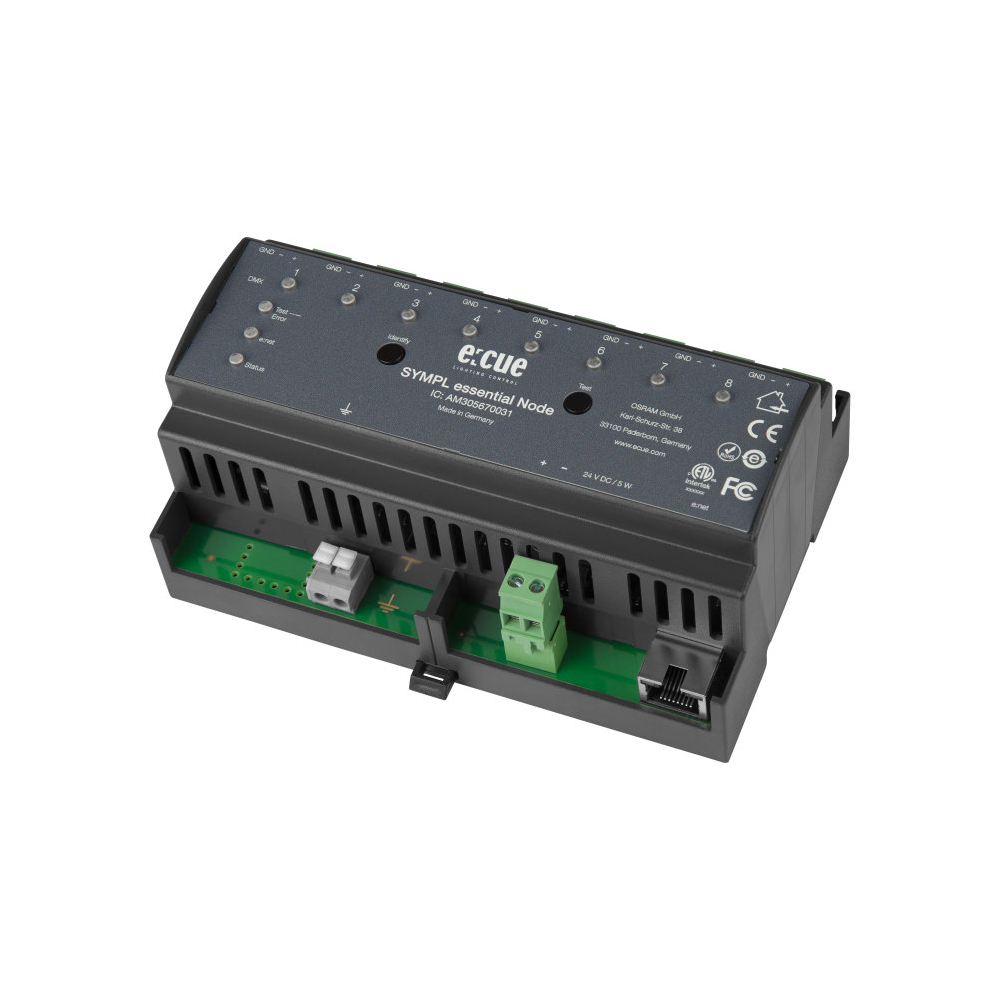

e:cue SYMPL essential Node

The SYMPL essential Node is an eight-channel DMX interface for use with e:cue’s lighting control solution SYMPHOLIGHT. It provides eight independent DMX interfaces for eight DMX512 universes with 4096 channels. The SMYPL essential Node is especially designed for projects in tough outdoor environments. Connection to the server runs via Ethernet interface with 100 Mbit/s. The SYMPL essential Node can be powered by an external power supply or via Power-over-Ethernet. It is easily mounted on standard 35 mm DIN rails, or with a key hole in the housing base on walls or on any stable vertical surface. The SYMPL essential Node is a simple, reliable and easy to use interface solution for e:cue lighting control solutions with SYMPHOLIGHT

Highlights

• 8 independent interfaces for DMX512
• Flexible mounting on 35 mm DIN rails or vertical surfaces
• Simple and easy integration in e:cue SYMPHOLIGHT
• Extended operating temperature -40 ... 70°C
• Backup-mode on data loss
• Integrated protection against surge
• Highly isolated outputs
• Power-over-Ethernet
• Reverse polarity protection
• Test mode via button
• Web interface for status and configuration

Identcode

• AM305670031
• AM305680031
