SYMPL DMX ESSENTIAL2 NODE (8 PORT, CE) | AM466930031 | TRAXON e:cue

Delivery time

Depending on the supplier, 8-14 days

Highlights: 8 ports (universes) for DMX / FastDMX FastDMX: Up to 1024 DMX channels/universe configurable (with SYMPHOLIGHT) Power-over-Ethernet High operating temperature: -30 ... 60 °C Isolated DMX outputs Surge protection (DMX side) Reverse polarity protection Test mode via button and web interface Integration in e:cue SYMPHOLIGHT and LAS Web interface for status and configuration

€2,499.00

Incl. 19% VAT , excl. shipping cost

Availability:

In stock

SKU

AM466930031

Details

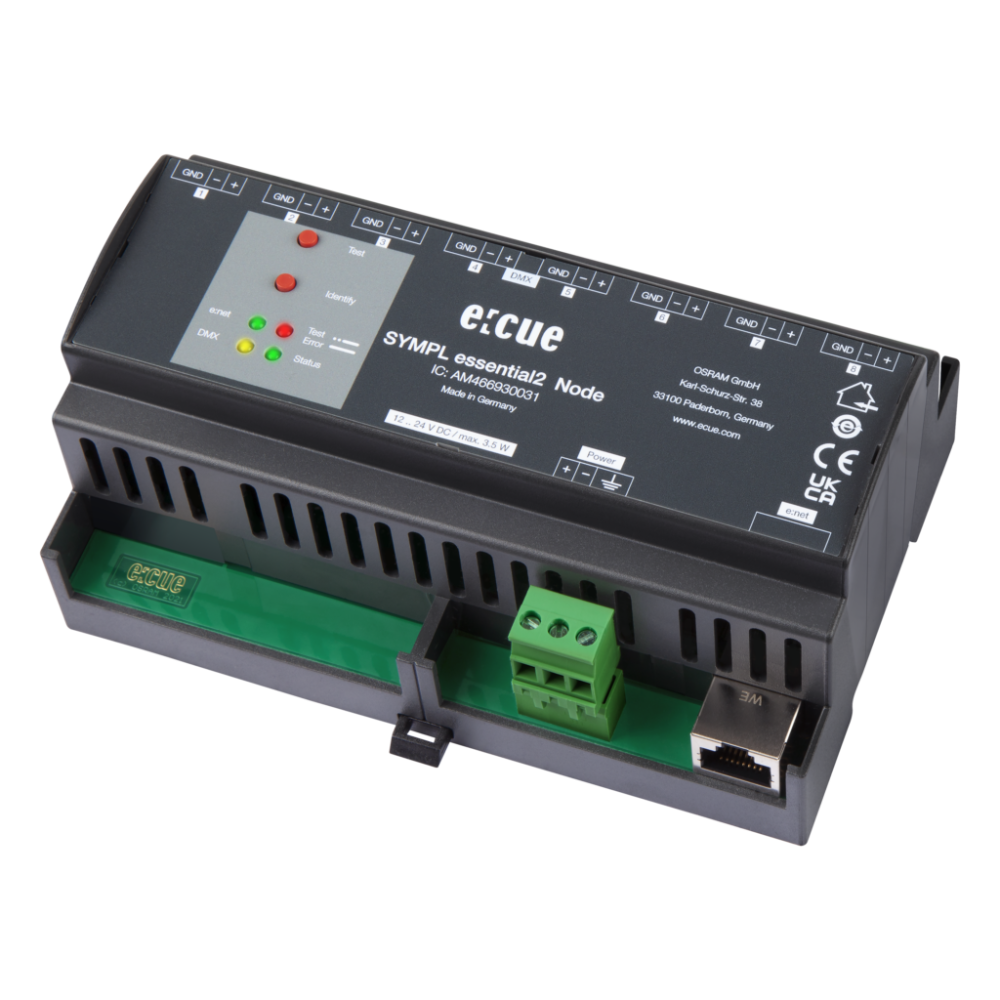

e:cue SYMPL essential Node 2

The SYMPL essential2 Node is an eight-channel DMX interface for use with e:cue’s lighting control solutions SYMPHOLIGHT and LAS. It provides an interfaces for up to 4096 DMX channels split into 8 universes with each 512 channels (DMX512 with SYMPHOLIGHT or LAS) - or for up to 8192 DMX channels split into 8 universes with 1024 channels each (FastDMX with SYMPHOLIGHT). Connection to the server runs via Ethernet interface with 100 Mbit/s. The SYMPL essential2 Node can be powered by an external power supply or via Power-over-Ethernet (PoE). It is easily mounted on standard 35 mm DIN rails, or with key holes in the housing base.

Highlights
