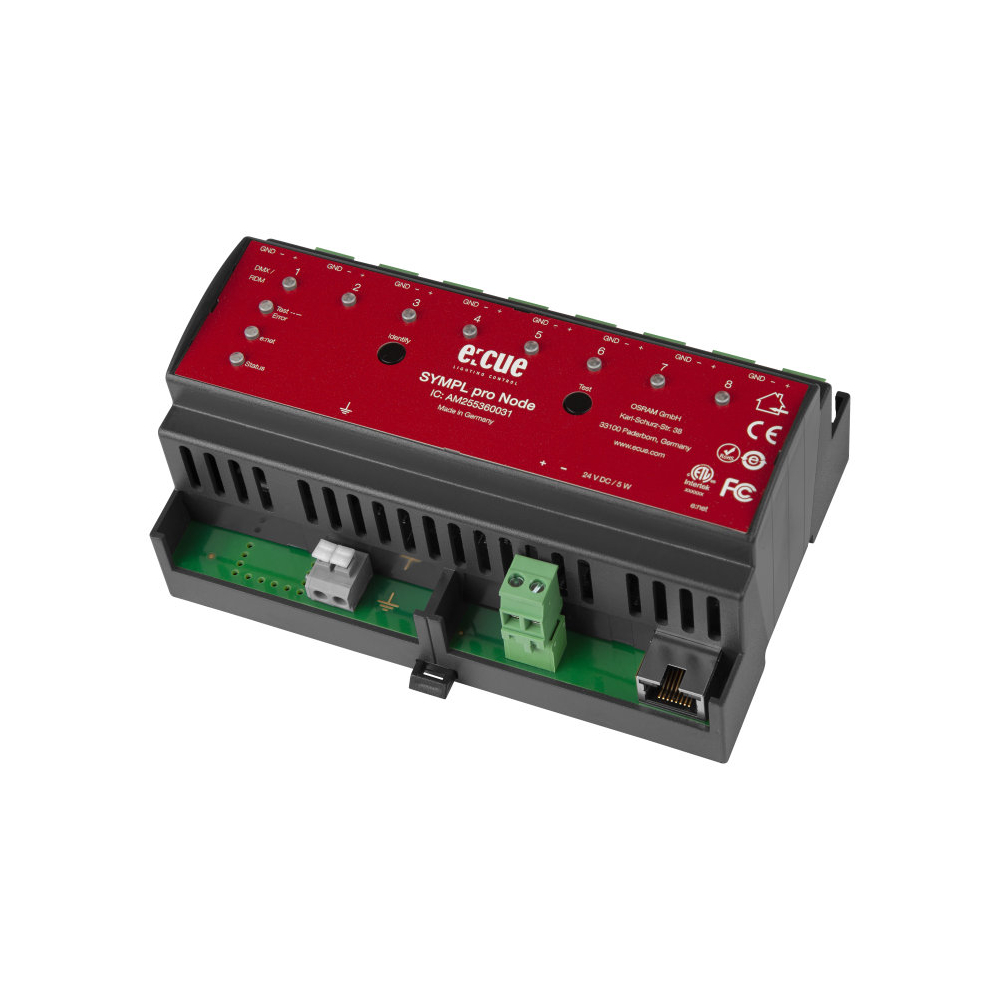

e:cue SYMPL pro Node

The SYMPL pro Node is an eight-channel DMX / e:pix and RDM interface for use with e:cue’s lighting control solution SYMPHOLIGHT. It provides eight independent DMX/RDM interfaces for eight DMX512 universes with 4096 channels. Also available as e:pix version (16384 channels). The SMYPL pro Node is especially designed for projects in tough outdoor environments. Connection to the server runs via Ethernet interface with 100 Mbit/s. The SYMPL pro Node can be powered by an external power supply or via Power-over-Ethernet. It is easily mounted on standard 35 mm DIN rails, or with a key hole in the housing base on walls or on any stable vertical surface. The SYMPL pro Node is a simple, reliable and easy to use interface solution for e:cue lighting control solutions with SYMPHOLIGHT

Highlights

• 8 independent interfaces for DMX512/RDM or e:pix/RDM
• Flexible mounting on 35 mm DIN rails or vertical surfaces
• Simple and easy integration in e:cue SYMPHOLIGHT
• Extended operating temperature -40 ... 70°C
• Embedded temperature & humidity sensors
• Backup-mode on data loss
• Integrated protection against surge
• Highly isolated outputs
• Power-over-Ethernet
• Reverse polarity protection
• Web interface for status and configuration

Identcode

• AM255360031
• AM305660031
• AM305690031
